Dryzone digital hygro meter could help manage the temperature and humidity of the production line for clients. By using our software to connect the hygrometers and dry cabinets together, you could easy to monitor and collect data on the temperature and humidity. Our digital hygro thermometer is quite labor-saving and easy to check and manage, which is important in nowadays information age and all are the Internet of things.
Measuring range: 0.1~99.9%RH; -20~65.9℃
Accuracy: ±2%RH (1%~80%RH); ±0.2℃ (at 25℃)
Resolution: 0.1%RH; 0.1℃
Operating Temp.-20~70℃ Sensor drift: ≦0.25 (%RH/yr); ≦0.05 (℃/yr)
Display Refresh Time: 1 minute
Memory: 40,000 measuring values
Software: CP03U reader
Operation Range: 0~50℃, 0~90%RH
Precision: ±1.0℃, ±2.0%RH(at 50%RH/25℃)
Resolution: 0.1℃, 0.1%RH Dimension: W310xD70xH320mm
Weight: 3kgs
Power: 110V/230V
Visibility Distance: 30m Power Consumption (average)12Wh
Calibration Reminding: Yes
Alarm Setting (%RH): Yes
Alarm Setting (℃): Yes
Alarm Buzzer: Yes
Alarm Flash Humidity Mangaer V3(software): Yes
Sensor Look V3: Option
Data Logger: Option
RS232 Port: Yes
Calibration Report: Yes
Humidity manager software: Sensor Look V3

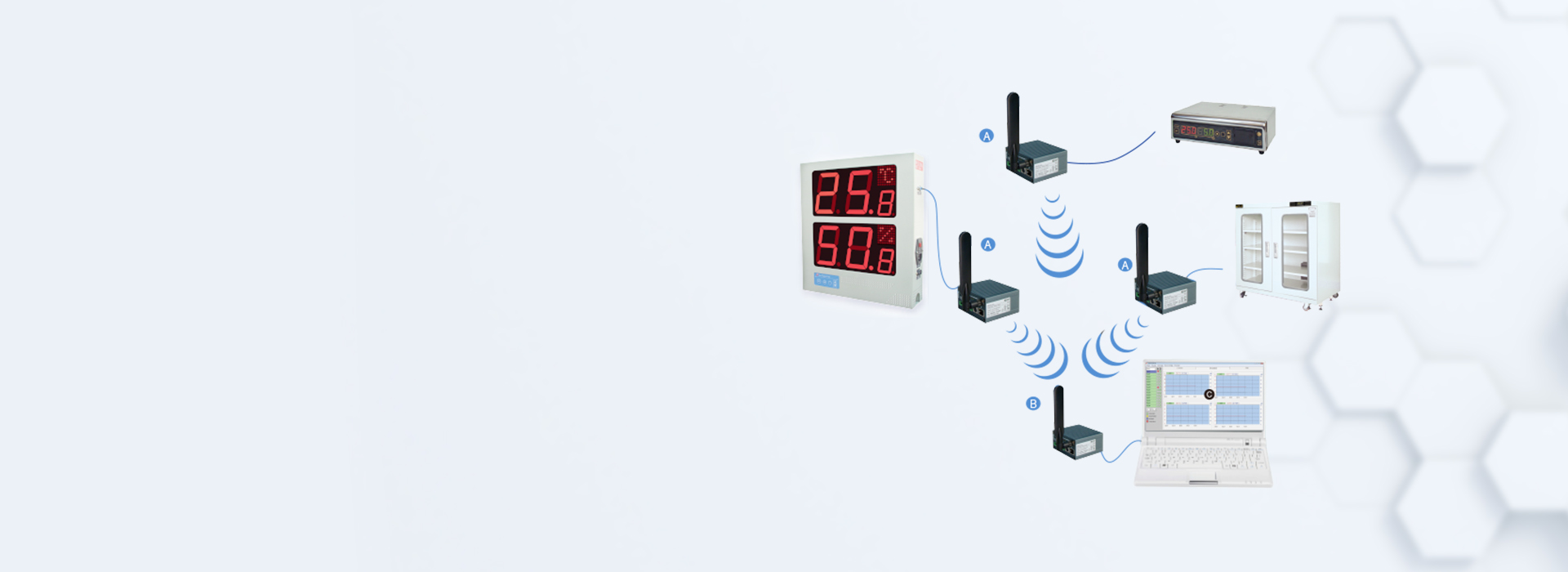

1. To save monitoring manpower at a huge plant, 32 sets of Hygrometers can be connected to a PC through intranet network. All of the data of temperature and relative humidity will be recorded and the fluctuation will be shown in the graph.
2. Data collection: Dryzone hygrometer either HT-5D or CP03U could collect the humidity and temperature data, HT-5D could collect data by using a datalogger or connect to the PC direct, CP03U could store 40,000 data itself.
A digital hygrometer has a sensing element or sensor that detects changes in humidity levels. The most common sensors used are capacitive and resistive. They work by reacting to changes in the humidity and creating an electrical signal.
The electrical signal produced by the sensor is converted to digital data using an analog-to-digital converter (ADC). This process converts the analog signal to a digital signal readable by the device's microprocessor.
The collected humidity data is then displayed on the device's screen, usually in percentage format. These drying storage cabinets for component storage also provide temperature readings.
Before using the digital hygrometer, it is necessary to calibrate it, so it provides accurate readings. The calibration procedure involves exposing the sensor to a humidity level with a known value, and then calibrating the device to match the known value.
Some digital hygrometers may have additional features, such as data logging, alarms, and wireless connectivity. These features help monitor humidity levels over time and send notifications when humidity is above or below set parameters.
a digital hygrometer works by detecting changes in humidity levels using a sensing element and converting the signal to digital form using an ADC. The data is then displayed on the device's screen, and additional features can be available, depending on the product. With accurate calibration, digital hygrometers provide reliable and consistent readings.
Before using your digital hygrometer, read the user manual that comes with it. It will give you clear instructions on how to use the device correctly and provide valuable information about the device's features and specifications.
Using the on/off button, turn on your digital hygrometer. It should begin displaying current temperature and humidity readings.
Before you can start using your hygrometer, it is crucial to calibrate it. Calibration removes any accumulated inaccuracies that may have arisen due to incorrect storage or handling.
To calibrate your hygrometer, refer to the user manual for detailed instructions.
Place your hygrometer at the location where you want to monitor humidity. Ensure that the hygrometer sensor is free from any obstruction that may prevent an accurate reading.
Allow the digital hygrometer to settle into the environment for some time, and then take a note of the humidity and temperature readings displayed on the device's screen.
If the reading shows that humidity is not in the desired range, adjust the environment to regulate the air quality. You may need to use a dehumidifier or humidifier to control the humidity level, depending on the readings displayed on the hygrometer.
The price of a hygrometer can vary depending on the type, brand, features, and accuracy of the device. Analog hygrometers are typically less expensive, ranging from $5 to $20, while digital hygrometers range from $10 to $80 or more depending on the specifications. High-end digital hygrometers with advanced features, such as data logging and wireless connectivity, can be more expensive. Overall, the price of a hygrometer will depend on the individual needs and budgets of the buyer, as well as the intended application for the hygrometer.
Monitro the humidity and temperature.
HT-5D hygrometer: Precision: ±1.0℃, ±2.0%RH(at 50%RH/25℃)
CP03U: ±2%RH (1%~80%RH); ±0.2℃ (at 25℃)
