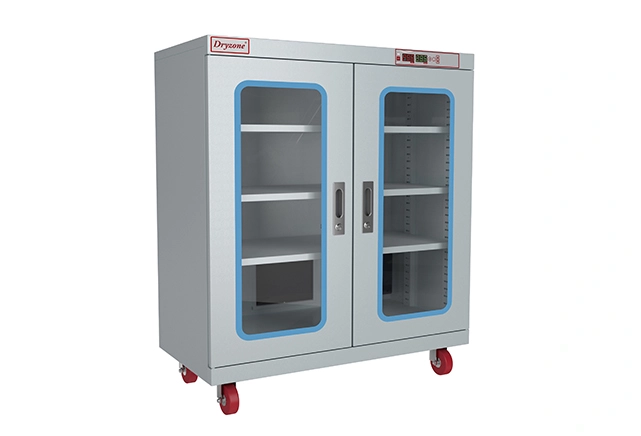

Rh Dry Cabinet C15 Series has an adjustable humidity range (15-50% RH). This kind of dry cabinet box is designed to protect measuring devices, electronic devices, PCB, medicine, some metal materials, and so on. And please also note the dry cabinet could only remove the humidity, and could not add humidity. And Dry Box Desiccator C15 Series has two series, C15U, and C15B.

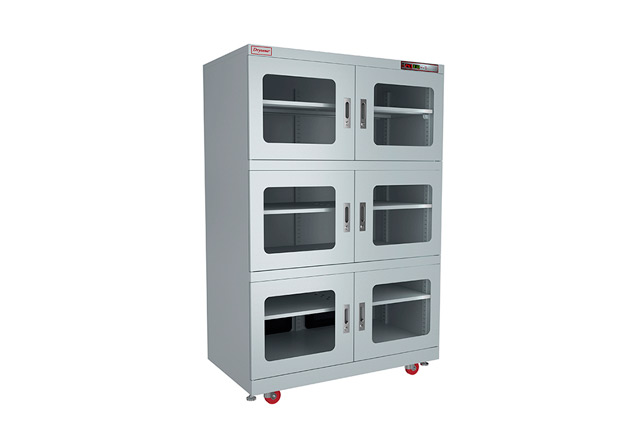

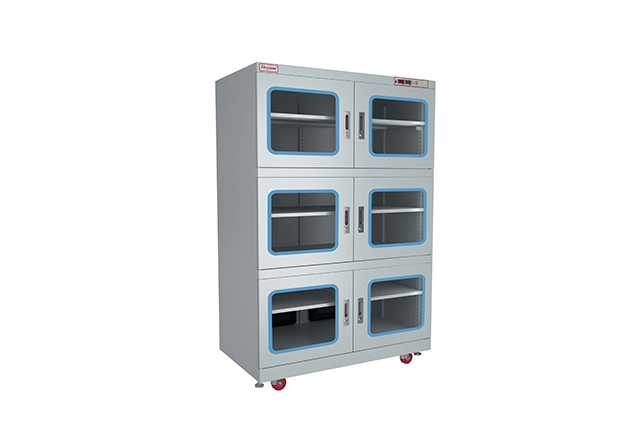

Outside Dimension | W1200*D695*H1820MM |
Internal Dimension | W1198*D645*H1618MM |
Capacity | 1250L |
Shelves | 5 shelves |
Power Consumption | 9.5w/h(Ave); 145w/h(Max) |
Color | White |
Voltage | 230V/110V |

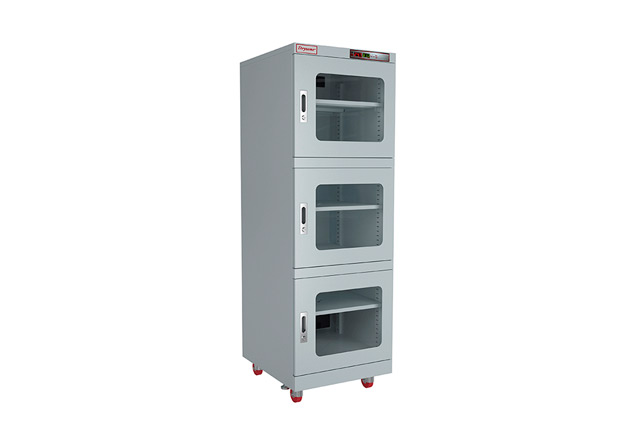

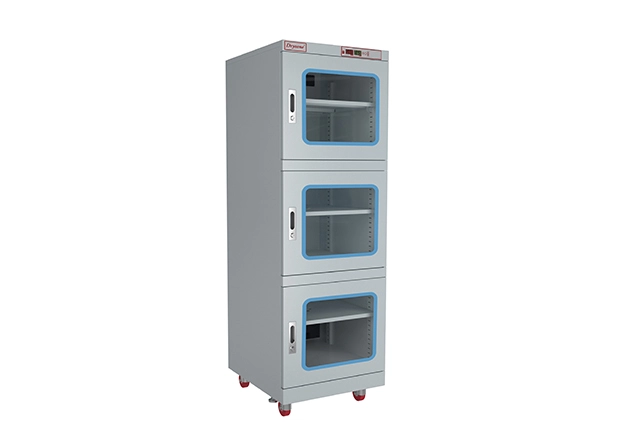

Outside Dimension | W600*D695*H1820MM |
Internal Dimension | W598*D645*H1618MM |
Capacity | 624L |
Shelves | 5 shelves |
Power Consumption | 6.5w/h(Ave); 145w/h(Max) |
Color | White |
Voltage | 230V/110V |

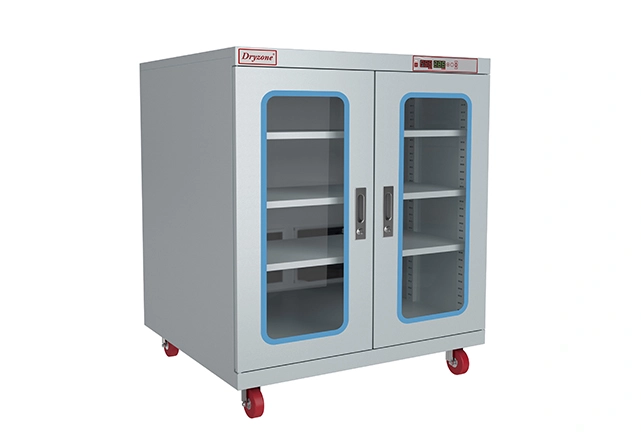

Outside Dimension | W905*D823*H1050MM |
Internal Dimension | W903*D773*H869MM |
Capacity | 607L |
Shelves | 3shelves |
Power Consumption | 5.5w/h(Ave); 145w/h(Max) |
Color | White |
Voltage | 230V/110V |
Outside Dimension | W600*D695*H1274MM |
Internal Dimension | W598*D645*H1071MM |
Capacity | 413L |
Shelves | 3shelves |
Power Consumption | 6w/h(Ave); 145w/h(Max) |
Color | White |
Voltage | 230V/110V |
Outside Dimension | W905*D475*H1050MM |
Internal Dimension | W903*D425*H869MM |
Capacity | 334L |
Shelves | 3shelves |
Power Consumption | 5.5w/h(Ave); 145w/h(Max) |
Color | White |
Voltage | 230V/110V |
Outside Dimension | W600*D672*H1820MM |
Internal Dimension | W448*D425*H869MM |
Capacity | 165L |
Shelves | 3shelves |
Power Consumption | 5w/h(Ave); 145w/h(Max) |
Color | White |
Voltage | 230V/110V |
Outside Dimension | W1200*D695*H1820MM |
Internal Dimension | W1198*D645*H1618MM |
Capacity | 1250L |
Shelves | 5 shelves |
Power Consumption | 9.5w/h(Ave); 145w/h(Max) |
Color | Black |
ESD Paint | 106~109Ω (surface resistance) |
Voltage | 230V/110V |
Outside Dimension | W600*D695*H1820MM |
Internal Dimension | W598*D645*H1618MM |
Capacity | 624L |
Shelves | 5 shelves |
Power Consumption | 6.5w/h(Ave); 145w/h(Max) |
Color | Black |
ESD Paint | 106~109Ω (surface resistance) |
Voltage | 230V/110V |

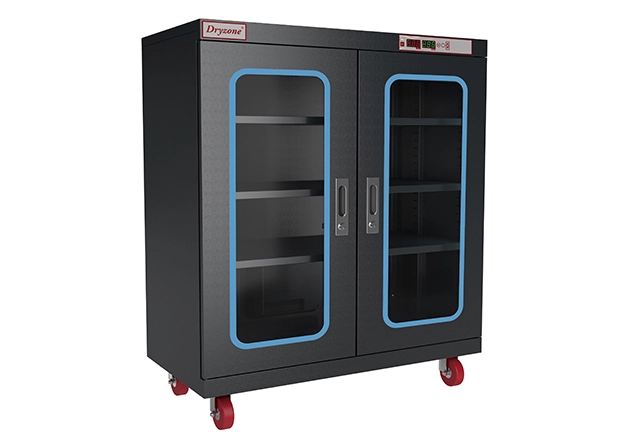

Outside Dimension | W905*D823*H1050MM |
Internal Dimension | W903*D773*H869MM |
Capacity | 607L |
Shelves | 3shelves |
Power Consumption | 5.5w/h(Ave); 145w/h(Max) |
Color | Black |
ESD Paint | 106~109Ω (surface resistance) |
Voltage | 230V/110V |

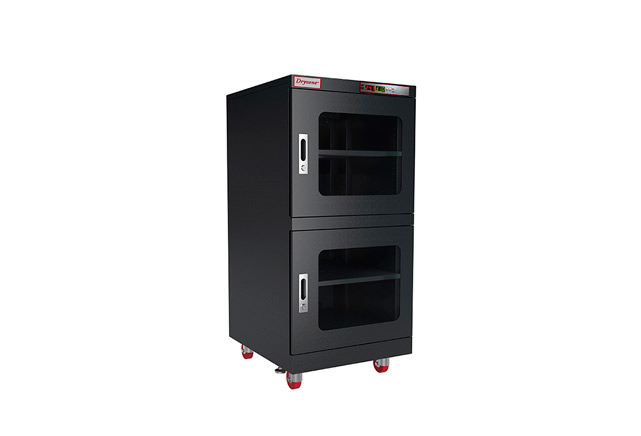

Outside Dimension | W600*D695*H1274MM |
Internal Dimension | W598*D645*H1071MM |
Capacity | 413L |
Shelves | 3shelves |
Power Consumption | 6w/h(Ave); 145w/h(Max) |
Color | Black |
ESD Paint | 106~109Ω (surface resistance) |
Voltage | 230V/110V |
Outside Dimension | W905*D475*H1050MM |
Internal Dimension | W903*D425*H869MM |
Capacity | 334L |
Shelves | 3shelves |
Power Consumption | 5.5w/h(Ave); 145w/h(Max) |
Color | Black |
ESD Paint | 106~109Ω (surface resistance) |
Voltage | 230V/110V |

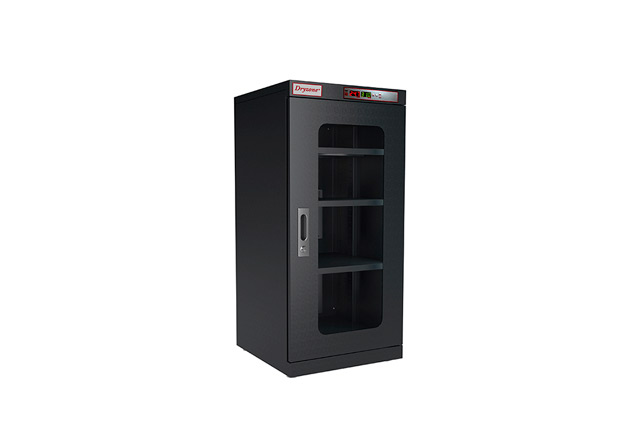

Outside Dimension | W600*D672*H1820MM |
Internal Dimension | W448*D425*H869MM |
Capacity | 165L |
Shelves | 3shelves |
Power Consumption | 5w/h(Ave); 145w/h(Max) |
Color | Black |
ESD Paint | 106~109Ω (surface resistance) |
Voltage | 230V/110V |
Humidity Range | 15-50%RH adjustable |
Display Precision | 3%RH, 1℃ |
Structure | 1mm thick carbon steel with paint. |
Door | Handles, airtight magnetic sealers and reinforced glass. |
Wheel | Like our low-humidity cabinet series, C15U/C15B has four 3" wheels, two of them with brakes. |
Grounding Wire | 1MG(940mm Long) |
Thank you for considering Dryzone Cabinet for your industrial drying needs. Please browse our website to learn more about our industrial ESD dry cabinets and services, and feel free to contact us if you have any questions or require assistance.
Dryzone CF1 Series: <1 Rh Ultra Low Humidity Dry Cabinet

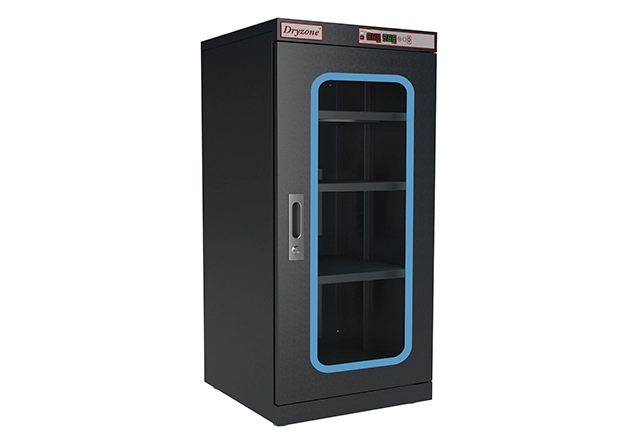

Dryzone C2E Series: <5% Rh Humidity Control Dry Cabinet
Dryzone C1U/C1B Series: 1-50% Rh Humidity Storage Cabinet
Dryzone C15U/C15B Series: 15-50% Rh Desiccant Dry Cabinet

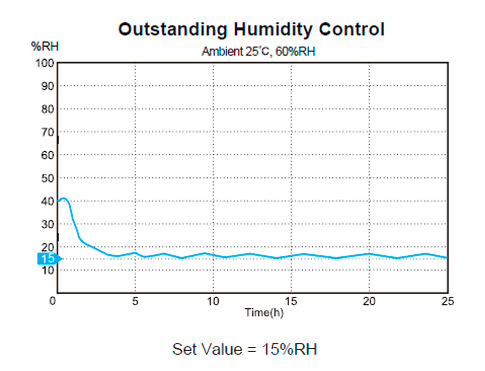

• 15-50%RH precise control: covers the optimal storage humidity range for sensitive materials such as electronic components and optical instruments.
• ±2%RH fluctuation control: our desiccant dry cabinets use military-grade humidity sensors to ensure stability better than industry standards.
• Cloud data monitoring/multi-terminal alarm (SMS + sound and light + APP push).
• Energy consumption is 35% lower than traditional solutions, and the electricity cost for 24-hour operation is less than 1 kWh/day.
Our desiccant dry box supports nitrogen purge mode (optional) to meet the special needs of the semiconductor industry.
