E60C Series Baking Dry Cabinet

E60C Series baking dry cabinet is 40~60℃ adjustable and <1%RH, it uses low temperature to evaporates water molecules inside the components, then the dehumidification host will completely absorb the water molecules in the air in the cabinet and discharge them out of the cabinet, and the humidity could go < 1%RH.It suites for kinds of electronic components, optical lenses, and other mildew preservation use.

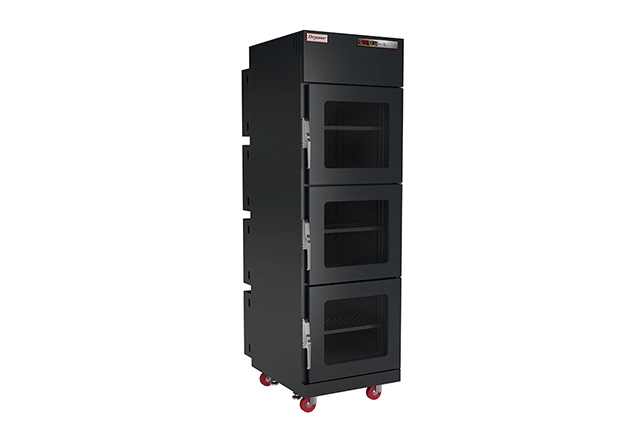

e60c baking dry cabinet 1

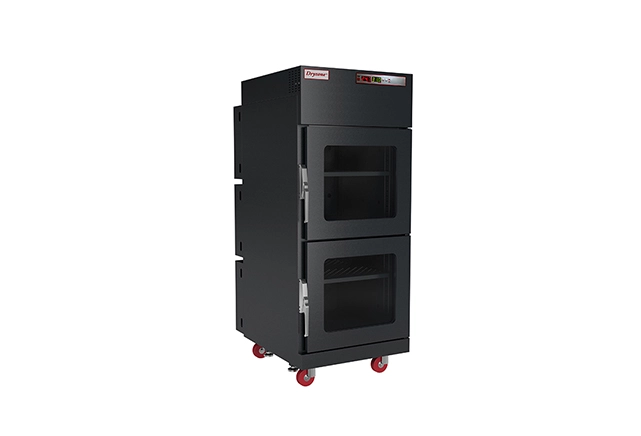

e60c baking dry cabinet 3

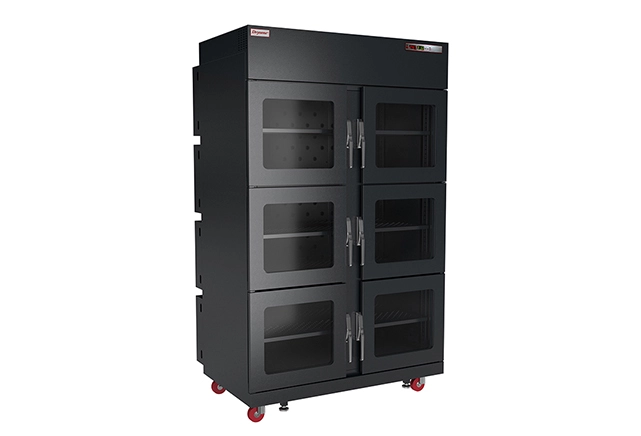

e60c baking dry cabinet 2
Contact for Price Now!

Specifications of E60c Baking Dry Cabinet

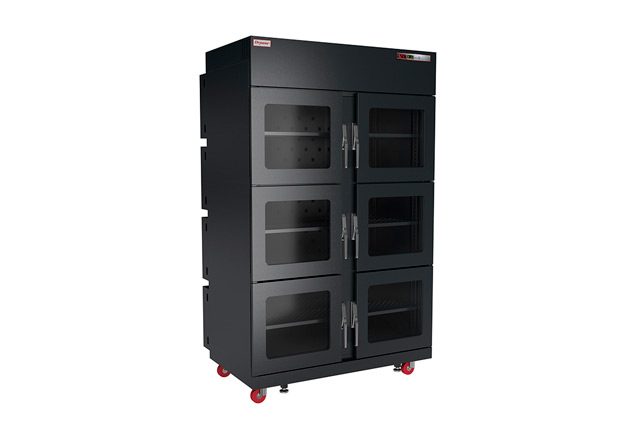

E60C-1200-6 Baking Dry Cabinet

E60C-1200-6 Baking Dry Cabinet

Temperature

40 ~60℃(adjustable), humidity <1%RH

Outside Dimension

W1200*D780*H1966mm

Internal Dimension

W1086*D587*H1496mm

Capacity

954L

Shelves

5 shelves SUS

Power Consumption

1000w/h(Ave); 2110w/h(Max)

Color

Black

Voltage

230V/110V


E60C-1200-6 Baking Dry Cabinet

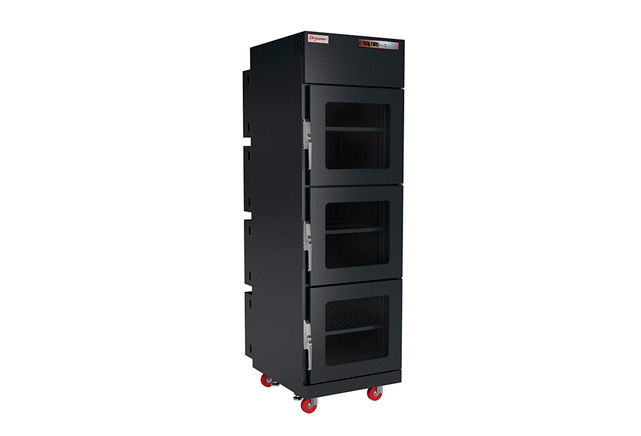

E60C-600 Baking Dry Cabinet

E60C-600 Baking Dry Cabinet

Temperature

40 ~60℃(adjustable), humidity <1%RH

Outside Dimension

W600*D780*H1966MM

Internal Dimension

W486*D587*H1496MM

Capacity

426L

Shelves

3shelves SUS

Power Consumption

600w/h(Ave); 1145w/h(Max)

Color

Black

ESD Paint

106~109Ω


E60C-600 Baking Dry Cabinet

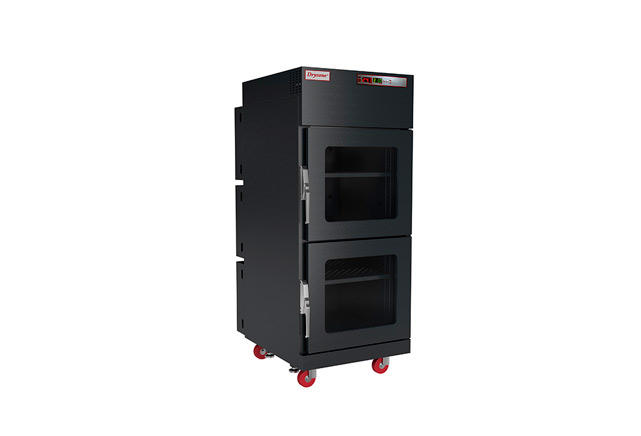

E60C-480 Baking Dry Cabinet

E60C-480 Baking Dry Cabinet

Temperature

40 ~60℃(adjustable), humidity <1%RH

Outside Dimension

W600*D780*H1455MM

Internal Dimension

W486*D587*H985MM

Capacity

281L

Shelves

3shelves SUS

Power Consumption

500w/h(Ave); 1145w/h(Max)

Color

Black

ESD Paint

106~109Ω


E60C-480 Baking Dry Cabinet

Features of E60c Baking Dry Cabinet


Temp.&Humidity range

40~60℃ adjustable, <1%RH

Display Precision

±3%RH; ±0.5°C (at <10%RH, 25°C )

Structure

1mm thick carbon steel double insulated layers with antistatic paint.

Door

Handles, airtight magnetic sealers and reinforced glass.

Interiror Light

Yes(open door the light on, close door the light off)

Wheel

Four 3" wheels, two of them with brakes.

Grounding Wire

1MG(940mm Long)


The E60C Baking Dry Cabinet is a high-quality storage solution offered by DryZone.  It is specifically designed for the safe storage of moisture-sensitive items such as electronic components, PCBs, and other types of equipment.  The cabinet is designed with advanced features such as temperature control and digital display, and a built-in baking function that allows for the safe removal of moisture from the stored items.  The E60C cabinet is also equipped with anti-static materials, which helps protect your stored equipment from ESD damage.  With its spacious and adjustable shelves, this cabinet is versatile and can be used for storing materials of different sizes and shapes.  It is a durable and reliable storage solution that offers superior protection from moisture and humidity, ensuring the longevity of your sensitive equipment. Click here for more Baking Dry Cabinets.


Why is a Baking Dry Cabinet Important?

A baking dry cabinet is an enclosed storage unit designed for the safe storage of materials and equipment that are sensitive to humidity. This cabinet is designed to maintain low humidity levels by circulating dry air inside the cabinet, creating a controlled environment that protects your materials from moisture and humidity. The baking function is used to evaporate moisture absorbed by the materials or components in the storage, which helps to prolong the life and quality of these materials.

Moisture-sensitive equipment and materials can become damaged or fail due to exposure to moisture or high levels of humidity. This can lead to costly replacements and delays in production. A baking dry cabinet is thus critical in preventing damage or failure of these materials, making it important equipment for any industry that utilizes moisture-sensitive materials.

How Does a Baking Dry Cabinet Work?

Baking dry cabinets maintain low humidity by circulating dry air inside the cabinet, creating a controlled environment that protects your materials and components from moisture and humidity. The baking function involves heating the cabinet to a specific temperature, which causes the moisture inside the materials or components to rise and evaporate, effectively restoring them to their dry state. This function helps to remove moisture content in these materials and components, which prolongs their life span and ensures the quality of the materials.


Optional Accessories of E60c Baking Dry Cabinet

ESD Safety Optional Accessories
ESD Safety
Stainless Steel Cabinet(sus#304) Optional Accessories
Stainless Steel Cabinet(sus#304)
Slide Drawer Optional Accessories
Slide Drawer
Nitrogen Flow Meter Optional Accessories
Nitrogen Flow Meter
Warning Light and Buzzer Optional Accessories
Warning Light and Buzzer
ESD Wheels Optional Accessories
ESD Wheels
Dryer Unit Optional Accessories
Dryer Unit
