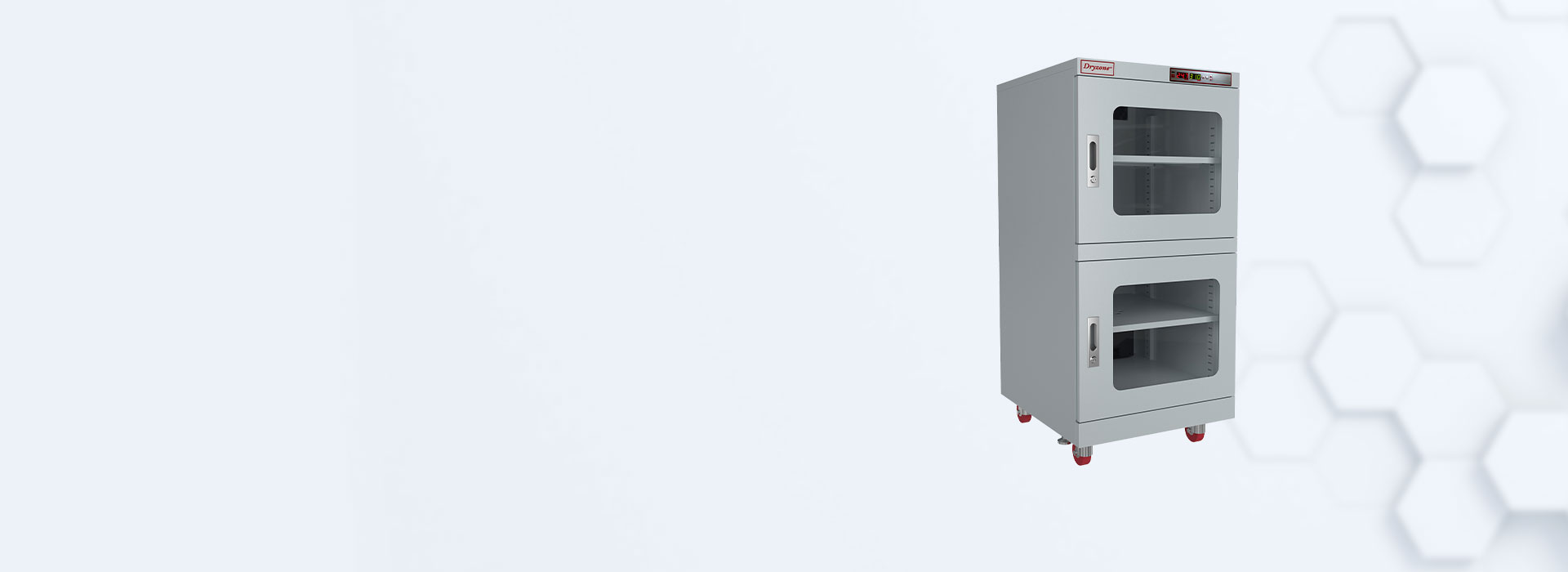

Dryzone Industrial Drying cabinets are designed for electronic gadgets and valuable collections, PCB (printed circuit boards)/IC/BGA/MSD(moisture-sensitive materials) 2, 2a, 3, 3a, 4, 4a different levels of components could find the right dry cabinet in Dryzone and with the Auto baking dry cabinet, the components floor life could be reset. With the patented dryer unit D10, the esd dry cabinet could provide fast and efficient dehumidification ability, and the lifetime of the dry cabinet could also last 10 years.
Humidity Range: <1%RH, Auto
Outside Dimension: W1200*D672*H1820MM
Internal Dimension:W1198*D644*H1618MM
Capacity: 1250L
Shelves: 5 shelves Power
ESD Paint
Voltage: 230V/110V
Consumption:135w/h(Ave); 425w/h(Max)
Humidity range:<5%RH
Display Precision: 3%RH, 1℃
Structure: 1mm thick carbon steel with paint.
Door: Handles, airtight magnetic sealers, and reinforced glass.
Wheel: Four 3'' wheels, two of them with brakes.
Grounding Wire: 1MG (940mm Long)
Humidity Range: 1-50%RH adjustable
Display Precision: 3%RH, 1℃
Structure: 1mm thick carbon steel with paint.

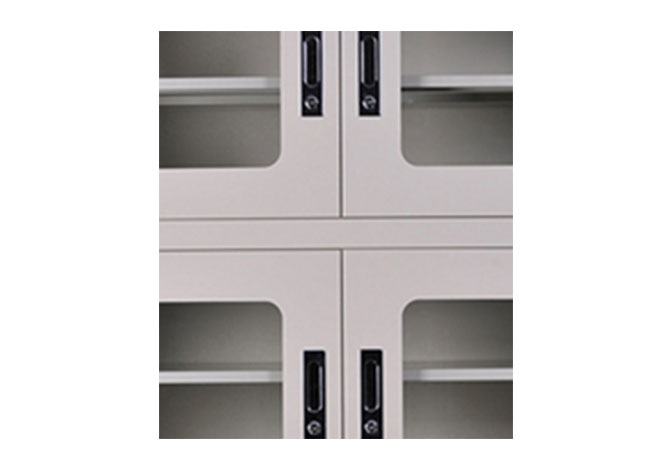

Door: Handles, airtight magnetic sealers and reinforced glass
Wheel: C1U/C1B has four 3" wheels, two of them with brakes.
Grounding Wire: 1MG(940mm Long)
Humidity Range: 15~50%RH, adjustable
Outside Dimension: W600*D672*H632mm
Internal Dimension: W598*D642*H525mm
Capacity: 202L
Shelves: 1pcs
Normal Paint
Voltage: 230V/110V
Power ConsumptionAve. 5W/h; Max. 140W

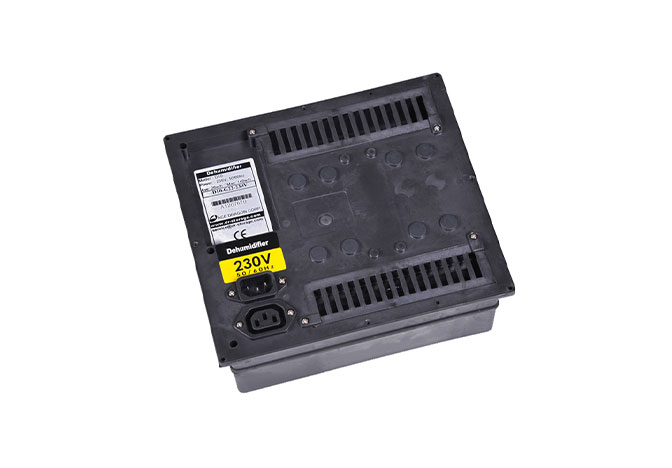

Dryzone industrial dry cabinet absorbs moisture in the dry cabinet through the imported material (molecular sieve) physically, after saturation, heating, and the memory alloy opening, and closing, the moisture is exhausted in the form of water vapor. Thus repeatedly, until it reaches the IC program set the humidity value on the LED.

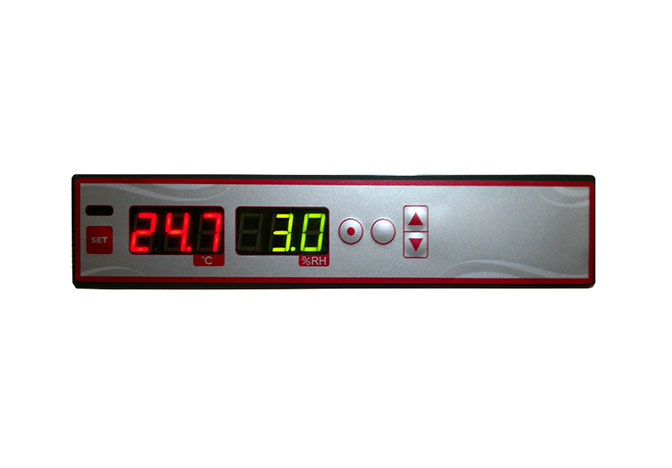

Display Precision:±3%RH;±1℃
Built-in flash & buzzer alarm（option)
Toughened safty glass window
Special design steel structure with excellent air tightness
PPS material: Compare to ABS material cover which is easy to catch fire,PPS material tolerance heat up to 230°C to avoid any deforming or melt down of the dryer unit
Fire-resistance material certificate.
Regenerate dehumidifying material
Imported European molecular sieve which could recycle
used for years.
Modular design : easy maintenance and upgrade

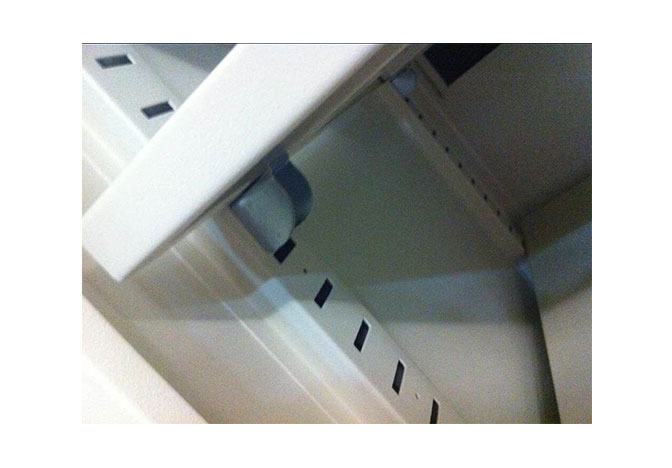

The distance between shelves is adjustable and the shelves could be moved away or add more shelves as you need.
For the first time usage, plugit in and keep the cabinet empty at least for 24 hours before storing for any items.
The best performance of the drying storage cabinets for component storage is achieved under the ambient condition of temperature below 30℃ and relative humidity below 60%RH. But this does not mean other relative environment could not be okay, just ask us for professional advise.
Keep it away from direct outlet of ventilation; Keep it 10-15cm away from wall.
