Dryzone dry nitrogen storage cabinets deliver a fast recovery time, ideal for humidity-sensitive industries such as semiconductors. Each nitrogen desiccator cabinet uses real-time humidity control to regulate N2 supply efficiently. With the built-in QDN (Nitrogen Saving Module), it saves up to 40–60% nitrogen compared with traditional nitrogen dry boxes.
Existing nitrogen cabinet or dry cabinets can also be upgraded with our NC-2 Nitrogen Controller Module, reducing N2 or dry air consumption while maintaining stable low-humidity storage. The Dryzone N2 cabinet combines precise humidity control, adjustable shelves, and anti-static protection, providing a reliable solution for sensitive component preservation.

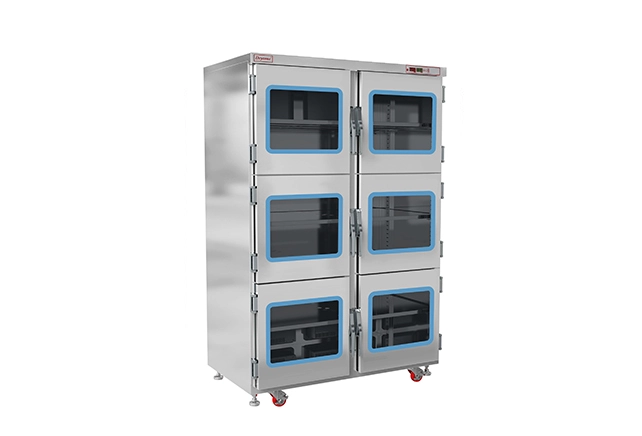

CQS-1200-6 Nitrogen Cabinet
Humidity Range: 1~50%RH, adjustable
Outside Dimension: W1200*D672*H1820MM
Internal Dimension: W1198*D644*H1618MM
Nitrogen Filling Module: QDN*1
Loading Capacity of Shelf: 80 kgs/per shelf
Capacity: 1250L
Shelves: 5 pcs, adjustable
Color: Silver
Structure: SUS 304
Display Precision: ±3%RH;±1°C
Resolution: 0.1%RH; 0.1°C
Power Consumption: Ave. 20W/h; Max. 50W
We focus on meeting the special requirements of the "N2 cabinet purpose" in different fields. Equipped with an intelligent FUZZY micro‑computer induction system, the Dryzone N2 cabinet automatically adjusts nitrogen filling based on the preset humidity value. When humidity rises above the set point, nitrogen is added; when it falls, filling stops — achieving true energy efficiency. A delay‑filling design of the nitrogen box minimizes nitrogen loss during door openings, avoiding the waste commonly caused by real‑time controllers and magnetic valves used in traditional dry box cabinets.
Unlike conventional moisture prevention using desiccants, the Dryzone nitrogen control cabinet removes humidity by filling N2. The principle is that moisture in the air is water vapor (H₂O). By filling N2 and setting the desired humidity value on the LED display, nitrogen displaces the moist air inside the nitrogen desiccator cabinet, effectively reducing humidity. Once the target RH is reached, the system automatically stops N2 flow. Compared with a traditional dry box cabinet, the nitrogen control cabinet offers faster recovery times. Upgrade your equipment to a nitrogen dry box cabinet!

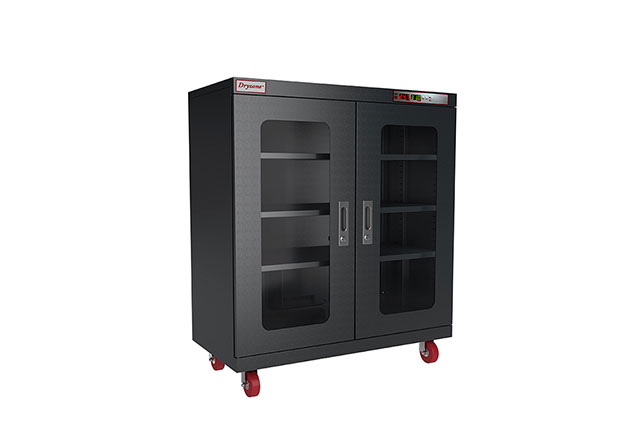

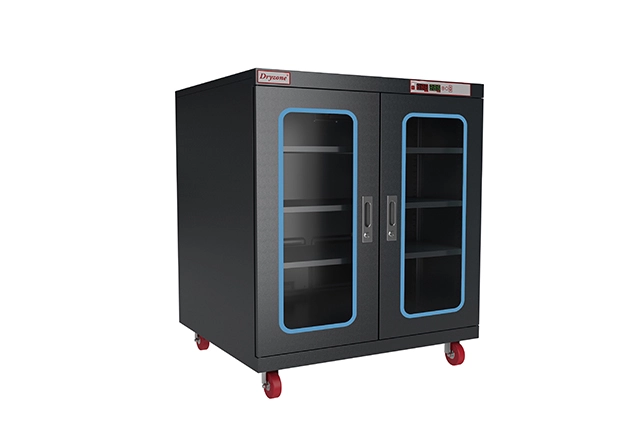

Outside Dimension: W905*D475*H1050MM
Internal Dimension: W903*D425*H869MM
Capacity: 334L
Shelves: 3shelves
Power Consumption: 55w/h(Ave);150w/h(Max)
Color: Black
ESD Paint: 106~109Ω

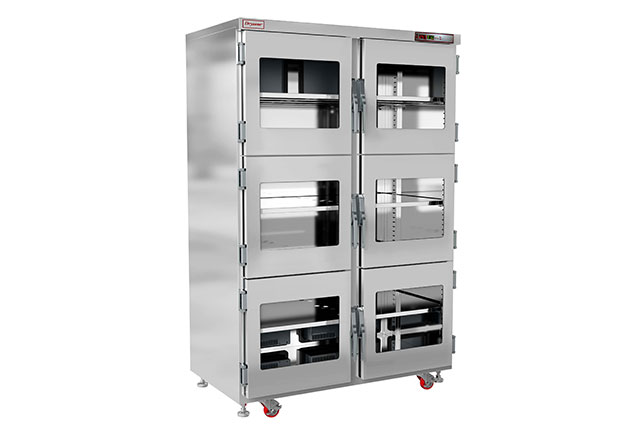

Outside Dimension: W1200*D695*H1820MM
Internal Dimension: W1198*D645*H1618MM
Capacity: 1250L
Shelves: 5 shelves
Power Consumption: 105w/h(Ave);300w/h(Max)
Color: Siver White
Voltage: 230V/110V
Better to have nitrogen pipe in your factory. If not, ask Dryzone, one of the pro dry cabinet manufacturers in China, for help.
Yes, by adding our NC-2 (nitrogen controller module) we could upgrade your humidity storage cabinet and help you save the N2.
Yes, normally all our nitrogen desiccator cabinets will leave some room for upgrade, just come to us for further info.
Dryzone Cabinet's nitrogen cabinet is a revolutionary storage solution for preserving food and other items by reducing oxidation. Nitrogen cabinets work by replacing the air inside the cabinet with nitrogen gas, which creates a low-oxygen environment that inhibits oxidation and slows down the aging process of stored items. This blog post provides an overview of how the nitrogen cabinet achieves its excellent antioxidation effect. It explains how the low-oxygen environment inside the cabinet prevents the growth of microorganisms and how the nitrogen gas works to reduce the oxidation of stored items. The post also discusses the benefits of using a nitrogen cabinet, including longer shelf life, improved quality, and reduced waste. Overall, this article offers a helpful introduction to the benefits of using a nitrogen cabinet for storage and preservation.
Are moisture-proof cabinets a superior storage solution compared to nitrogen cabinets? Which can use moisture-absorbing materials and airtight seals to keep moisture out, preventing damage to stored items such as corrosion and mold growth? Click this blog for more information about the differences between a Nitrogen Cabinet and a Moisture-proof Cabinet.
Dryzone Cabinet's nitrogen cabinet is a cutting-edge storage solution that utilizes the power of nitrogen gas to create a low-oxygen environment that inhibits oxidation and preserves the quality of stored items. This blog post explains the working principle of the nitrogen cabinet and how it can be used to preserve food, beverages, and other items. The article details how the cabinet works by replacing the air inside with nitrogen gas, and how this creates an environment that is hostile to microorganisms and slows down the aging process of stored items. The post also highlights the many benefits of using a nitrogen cabinet, including longer shelf life, improved flavor and texture, and reduced waste.
In this blog, we discuss the working principle and application of nitrogen cabinets. These specialized equipment are used in industries to prevent oxidation and deterioration of sensitive materials. By replacing oxygen with nitrogen gas, the cabinets create a corrosion-free environment. They are crucial in preserving the integrity of delicate materials used in electronics, pharmaceuticals, semiconductors, and biotechnology.
